150Mbps Wireless N PCI Express Adapter

  • Home
  • 150Mbps Wireless N PCI Express Adapter

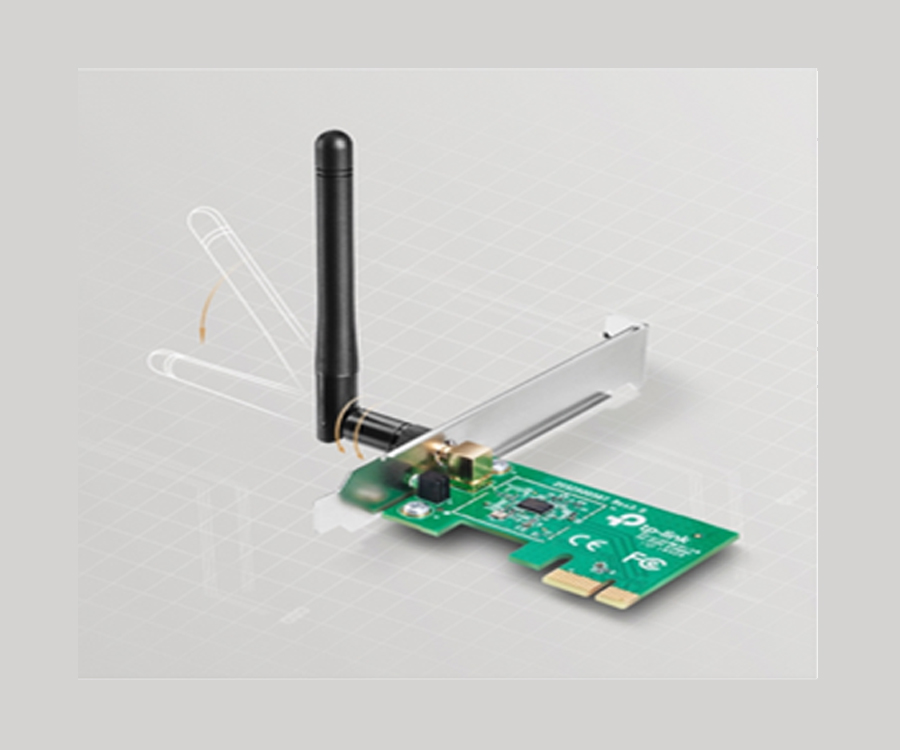

150Mbps Wireless N PCI Express Adapter

  • Up to 150Mbps wireless transmission rate
  • Provides PCI Express interface
  • Advanced secure connection with WPA/WPA2 encryption
  • Bundled utility enables easy management

HARDWARE FEATURES:

Interface : PCI Express
Dimensions ( W x D x H ) : 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)
Antenna Type : Detachable Omni Directional (RP-SMA)
Antenna Gain : 2dBi

WIRELESS FEATURES:

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.400-2.4835GHz

Signal Rate

11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception Sensitivity

130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Transmit Power

<20dBm(EIRP)

WIRELESS FEATURES:

Wireless Modes

Ad-Hoc / Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA-PSK/WPA2-PSK

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

OTHERS:

Certification

CE, FCC, RoHS

Package Contents

Wireless Adapter
Detachable Omni directional antenna
Resource CD
Quick Installation Guide

System Requirements

Windows XP/Vista/7/8/8.1/10(32/64bits)

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
