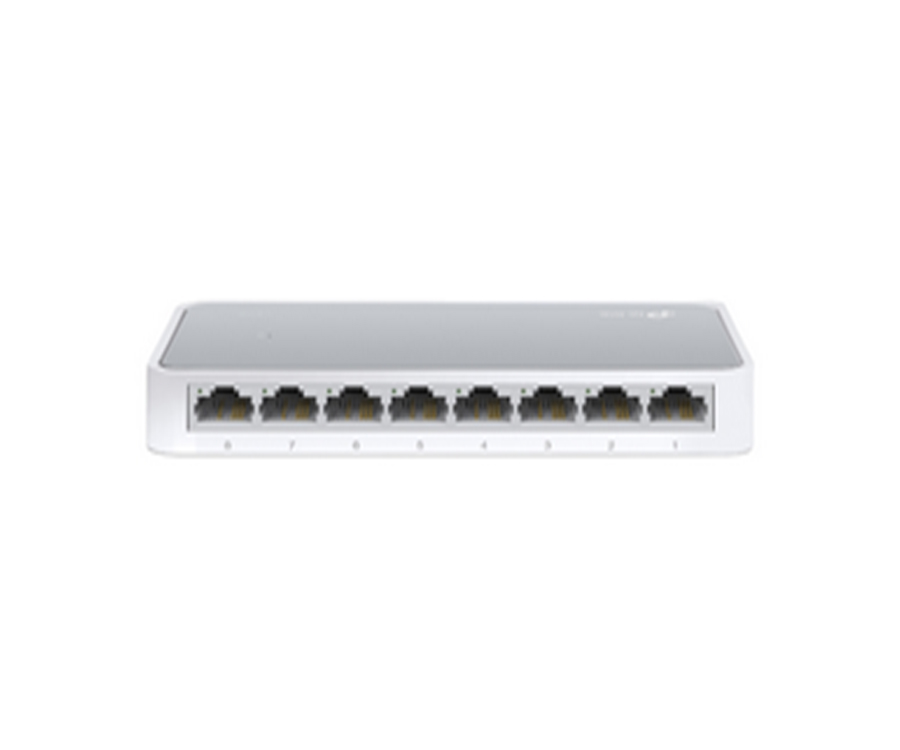

8-Port 10/100Mbps Desktop Switch

8-Port 10/100Mbps Desktop Switch

  • 8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop design
  • Plug and play, no configuration required

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD

Interface

8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity

Fanless

External Power Supply

100-240VAC, 50/60Hz
(Output: 9VDC / 0.6A)

Buffer Size

768Kb

Data Rates

10/100Mbps at Half Duplex ;
20/200Mbps at Full Duplex

LED Indicator

Power
Port network activity (on the network module)

Dimensions ( W x D x H )

5.3 × 3.1 × 0.9 in.
(135 × 79 × 23mm)

Max Power Consumption

2W

Max Heat Dissipation

7.0 BTU/h

SOFTWARE FEATURES

Transfer Method

Store and Forward

Advanced Functions

Green Technology
802.3X Flow Control, Back Pressure

OTHERS

Certification

FCC, RoHS

Package Contents

8-Port 10/100Mbps Desktop Switch
Power Adapter
User Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40℃~60℃ (-40℉~140℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
